In this article, you will learn how DownScan UnderVision displays underwater structure, how to read the DownScan screen, and how to use this information when scanning with your Deeper Quest bait boat.
How DownScan UnderVision Works
DownScan UnderVision uses a high-frequency imaging beam to produce a detailed view of what is directly beneath your Deeper Quest.
Unlike CHIRP sonar, which uses cone-shaped beams for fish detection and general scanning, DownScan uses a narrow imaging beam designed for detailed structure imaging.
DownScan beam coverage: 67° side-to-side × 1.5° front-to-back
This wide side-to-side and narrow front-to-back beam coverage captures a thin slice of the underwater environment with every scan. As the Deeper Quest moves, these slices are combined to create a detailed image of the bottom, underwater structure, vegetation, and other objects.

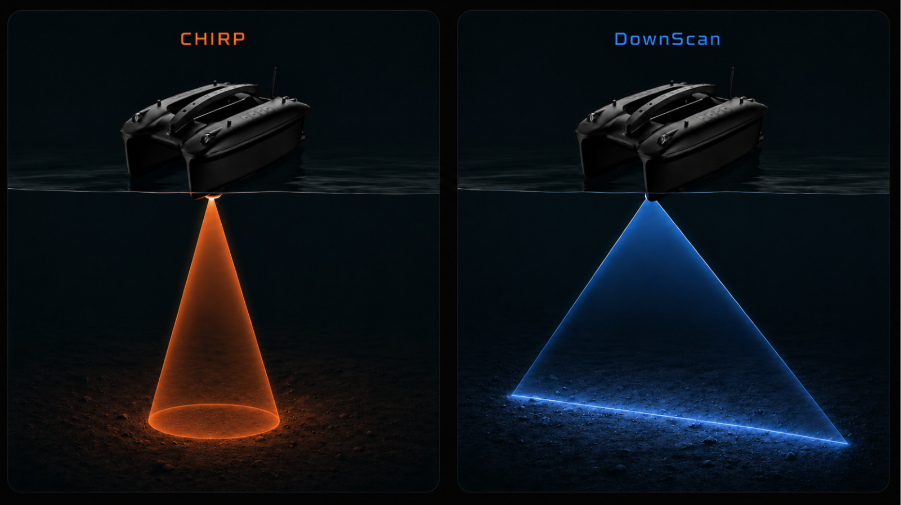

To better understand how CHIRP and DownScan beam coverage differ, see the illustration below.
As the Deeper Quest moves across the water, DownScan continuously scans thin sections beneath the boat. These scans are combined on the screen to create a continuous image of the bottom, structure, vegetation, and underwater objects.
How to Read the DownScan Screen
The DownScan display continuously updates as new sonar data is collected. The newest information appears on the right side of the screen, while older information gradually scrolls to the left. When the Deeper Quest moves, the display builds a continuous image of the underwater environment. If the boat is stationary, the sonar continues scanning the same area beneath the boat, so the display updates with new sonar returns from that location.
When reading the display:
- Look at the right side for the newest sonar information.
- Read older scanned areas toward the left side of the screen. You can also rewind the scan or zoom in to the places you find interesting.
- Watch how the bottom line changes as the Deeper Quest passes over different areas.
- Use the image to understand structure and bottom features before placing bait or rigs.
Understanding Sonar Returns
Everything shown on the DownScan display is created from sonar echoes reflected from the bottom and underwater objects.
In general:
- Stronger sonar returns appear brighter or more vivid.
- Weaker sonar returns appear darker or less intense.
- Harder or denser objects usually create stronger returns.
- Softer bottom, vegetation, or weaker reflections usually appear darker.
In general, brighter and more vivid DownScan sonar returns generally indicate stronger reflections, which are often produced by harder or denser objects. However, DownScan is designed primarily for structure visualization rather than bottom hardness interpretation. If your goal is to evaluate bottom hardness or composition, CHIRP provides a more reliable representation.
The appearance of sonar returns can also vary depending on water conditions, the angle of the object, and how the Deeper Quest passes over it. With experience, you'll become more confident in interpreting different types of underwater structure.
What DownScan Is Best For?
DownScan UnderVision is mainly used for understanding structure and bottom detail.
Use DownScan when you want to identify:
- Bottom transitions
- Vegetation and weed edges
- Submerged trees and branches
- Rocks
- Drop-offs and ledges
- Clear spots for bait placement
DownScan is especially useful when you already found a promising area and want to inspect it more carefully before releasing bait.
Fish in DownScan
Fish can appear in DownScan, but they usually do not appear as traditional fish arches.
Instead, fish may appear as small bright marks, dots, or short returns. This is normal because DownScan is designed primarily for detailed structure imaging, not fish arch interpretation.
For fish detection, CHIRP is still the preferred sonar mode. For structure interpretation and precise spot selection, use DownScan.
Using CHIRP and DownScan Together
CHIRP and DownScan are designed to complement each other. Although they cannot be used simultaneously, you can easily switch between the two sonar modes in the Fish Deeper app at any time during your fishing session.
A practical Deeper Quest workflow is:
- Use CHIRP to search for fish, monitor depth, and scan a wider area.
- Switch to DownScan to inspect the bottom, vegetation, structure, or obstacles in more detail.
- Use the information from both sonar modes to choose the best location for placing bait or rigs.
Tips for Better DownScan Images
For clearer DownScan readings:
- Avoid sharp turns when trying to inspect structure.
- Make a second pass from different direction over interesting areas.
- Compare CHIRP and DownScan views to better understand what you are seeing.
- Adjust Sensitivity if the image is too cluttered or missing detail.
DownScan is most effective when used together with CHIRP. While CHIRP helps you locate fish and understand the general underwater environment, DownScan allows you to inspect bottom composition and underwater structure in greater detail. Using both sonar modes together provides a more complete understanding of the area before placing bait or rigs.
DownScan Image Examples and Interpretation
The following examples show real DownScan images recorded with the Deeper Quest and explain how to identify different underwater structures and features.
Keep in mind that the same underwater object can look different depending on scanning conditions. Water depth, boat speed, scanning direction, and the shape and position of underwater objects all influence how they appear on the screen.
Each example highlights specific features visible in the DownScan image and explains how to interpret them. These examples will help you better understand what you're seeing and recognize similar structures during your own fishing sessions.
Example 1: Submerged Branches
These DownScan images show submerged branches extending above the lakebed. Their thin, irregular shapes appear as bright returns against the dark water background.
Usage tip: Scan the same structure from different directions, as branches may appear differently depending on the scanning angle. Try different colour palettes to see which one makes the branches easier to distinguish.
Example 2: Fish in DownScan
These DownScan images show several small, bright sonar returns suspended above the lakebed, particularly on the right side of the screen. These may indicate individual fish or small groups of fish. Unlike CHIRP, fish in DownScan typically appear as bright dots or short marks rather than traditional fish arches.
Usage tip: If you notice bright marks above the bottom, switch to CHIRP mode and scan the same area again to help determine whether they are fish.
Example 3: Underwater Vegetation
These DownScan images show underwater vegetation growing from the lakebed. Individual stems and plants appear as thin, bright returns extending upward from the bottom. Different color palettes can make the vegetation easier to distinguish from the surrounding water and lakebed.
Usage tip: Try different colour palettes and sensitivity settings to make individual plants and vegetation edges more visible. Scan the same area from different directions to better understand the height and distribution of underwater vegetation.
